#!/usr/bin/env python
from gipsy import *

init()
anyout("GIPSY")
finis()


#!/usr/bin/env python
import gipsy

gipsy.init()
gipsy.anyout("GIPSY")
gipsy.finis()


#!/usr/bin/env python
from gipsy import *

init()
xeq("DISK INSET=;")

finis()


#!/usr/bin/env python
import os
import gipsy
from time import sleep

gipsy.init()
gipsy.anyout("XEQ() starts task CREATE and create a dummy three dimensional set 'aurora'")
gipsy.anyout("The 3rd axis is Frequency and one can view the channel maps with VISIONS")

setname = "aurora"
if os.path.isfile("./"+setname+".descr"):
   gipsy.anyout("Deleting set %s first..."%(setname))
   gipsy.xeq("DELETE INSET=%s; OK=YES"%(setname))

sleep(1)
command = "CREATE OUTSET=aurora; INSTRUME=WSRT; CTYPE1=RA---NCP; NAXIS1=150; CRPIX1=50;\
           CUNIT1=DEGREE; CRVAL1=45; CDELT1=-0.01;\
           CTYPE2=DEC--NCP; NAXIS2=100; CRPIX2=50; CUNIT2=DEGREE; CRVAL2=30; CDELT2=0.01;\
           CROTA2=0;\
           CTYPE3=FREQ-OHEL; NAXIS3=64; CRPIX3=10; CUNIT3=HZ; CRVAL3=0.14154181994170E10;\
           CDELT3=-.78125E5; DUNIT3=KM/S; DRVAL3=0.1050E04; FREQ0=0.14204057520000E10;\
           BUNIT=W.U.; CTYPE4=; FUNCTION=FREQ*exp(-(RA/50)**2-(DEC/40)**2);"
gipsy.xeq(command)
gipsy.finis()


#!/usr/bin/env python
from time import sleep

import gipsy as gip
gip.init()
gip.anyout("Task Output test")
gip.anyout("anyout(), status(), typecli()")
gip.status("This is a status message. I wait 5 sec.")
sleep(5)
gip.typecli("This is sent to the Hermes command line")
gip.usertext("Press Enter to stop", default=1)
gip.finis()


#!/usr/bin/env python
from gipsy import *

init()

# Syntax: x = userreal(keyword="INPUT=", message=None, default=0, defval=0.0, nmax=1)
# example 1: All arguments are default.
# Note the difference between the results of userreal() and userdble()

x = userreal()
anyout("Result userreal(): "+str(x))
anyout("Type of result: "+str(type(x)))

x = userdble()
anyout("Result userdble(): "+str(x))
anyout("Type of result: "+str(type(x)))


# example 2: Specify everything
x = userdble(keyword="NUMBER2=", message="Give one value: [10.3]",
             default=1, defval=10.3, nmax=1 )
anyout( str(x) )


# example 3: Specify everything, but in fixed order so that you can omit
# the argument names
x = userdble("NUMBER3=", "Give one value: [10.3]", 1, 10.3, 1 )
anyout( str(x) )


# example 4: Get a list of n numbers. Now 'x' is a list so you can
# index the individual numbers
x = userdble("NUMBER4=", "Give max. 10 values", 1, (1.3), 10 )
anyout( str(x) )
anyout( str(type(x)) )
anyout( "Number = %.12f" % x[0] )


# example 5: Get a list of n numbers. with defaults
x = userdble("NUMBER5=", "Give max. 10 values", 1, (1,2,3,4), 10 )
anyout( str(x) )
anyout( "First Number = %f" % x[0] )

finis()


#!/usr/bin/env python
import gipsy as gip

gip.init()

# Input of text (multiple strings) without default
s = gip.usertext("MYTEXT=", "Enter some text: ", defval="Dummy text")
gip.anyout(s)
gip.cancel("MYTEXT=")

# Input of tekst but a default has been set and returned when enter is pressed
deftext = "My default text"
s = gip.usertext("MYTEXT=", "Enter some text:   [{}]".format(deftext), default=1, defval=deftext)
gip.anyout(s)

# Example: CONTINUE=j YES t  -> [True, True, True]
# Example: CONTINUE=NEE n Fal -> [False, False, False]
b = gip.userlog("CONTINUE=", "Continue with step1, with step 2, step 3?:   [Y, N, Y]",
                 default=1, defval=[True,False,True], nmax=3)
gip.anyout(str(b))
gip.anyout("Type of b: "+str(type(b)))
gip.anyout("b[0]="+str(b[0]))
gip.anyout("Type of b[0]: "+str(type(b[0])))

gip.finis()


#!/usr/bin/env python
import gipsy as gip

gip.init()

S = gip.userchar("WORDS=", "Enter some words (max 4): ", nmax=4)
gip.anyout(str(S))

# Re use the keyword which is not cancelled
S = gip.usercharl("WORDS=", "Enter some words (max 4): ", nmax=4)
gip.anyout("Lowercase version: "+str(S))

S = gip.usercharu("WORDS=", "Enter some words (max 4): ", nmax=4)
gip.anyout("Uppercase version: "+str(S))


gip.finis()


#!/usr/bin/env python
import gipsy as gip

gip.init()

gip.wkey("ANGULAR=120d30m15s")
a = gip.userangle("ANGULAR=", "Enter angular real: ")
gip.anyout(str(a))

gip.wkey("ANGULAR=120 30 15 deg")
a = gip.userangle("ANGULAR=", "Enter angular real: ")
gip.anyout(str(a))

gip.wkey("ANGULAR=12h30m")
a = gip.userangle("ANGULAR=", "Enter angular real: ")
gip.anyout(str(a))

gip.wkey("ANGULAR=12h30s")
a = gip.userangle("ANGULAR=", "Enter angular real: ")
gip.anyout(str(a))

gip.wkey("ANGULAR=4r")
a = gip.userangle("ANGULAR=", "Enter angular real: ")
gip.anyout(str(a))

# Interaction:
gip.cancel("ANGULAR=")
a = gip.userangle("ANGULAR=", "Enter angular real")
gip.anyout(str(a))
gip.anyout("Type of output: "+str(type(a)))


gip.finis()


#!/usr/bin/env python
from gipsy import *

init()

# example 1: Repeat over user input until program agrees with input
# The reject shows a message and cancels the keyword input so it can
# be entered again

ok = False
keyword = "NUMBER1="
while not ok:
   x = userreal(keyword, "Enter a number:", 0, 0, 1)
   anyout( str(x) )
   if x >= 0 :
      ok = True
   else:
      reject( keyword, "Negative value not allowed" )


# example 2: Repeat over user input. Cancel the keyword.
# Note that we are using the default value for the keyword because
# we did not specify the parameter keyword=

attempt = 1
while True:
   v = userreal(nmax=1, default=1, message='Enter number (attempt %d):'% attempt)
   anyout(str(v))
   cancel()
   attempt += 1

finis()


#!/usr/bin/env python
from gipsy import *

init()

name = usertext(message="Set name")

try:
   s = Set(name)
except GipsyError, msg:
   error(4,str(msg))

del s

finis()


#!/usr/bin/env python
from gipsy import *

init()

fitsfile = "file000001.mt"             # Set a default name for an fits file
fitsfile = usertext("FITSFILE=",
                    "Enter name of fits file:  [%s]" % fitsfile, defval=fitsfile)

# If the fits file you entered does not exist, then ens this program
# in the GIPSY way e.g. call the 'finis' function
if not os.path.exists(fitsfile):
   anyout(">>>>>>> WARNING: Cannot find %s <<<<<<<<" % fitsfile)
   finis()


# Get a name for a GIPSY set to store the fits data in gds format
outputset = "gipsyset"
outputset = usertext("GIPSYSET=",
                     "Enter name of output set: [%s]" % outputset, 1, outputset)
try:
   s = Set(outputset)
except:
   pass
else:
   s.delete()
   del s


xeq("RFITS AUTO=Y FITSFILE=%s; INFILES=0; OUTSET=%s" % (fitsfile, outputset) )
xeq("VIEW INSET=%s CLIP=" % outputset)

finis()


#!/usr/bin/env python
from gipsy import *

init()
anyout("TASK:"+myname())

xeq("DISK INSET=;")

while True:
   input = usertext("SET=", "Set, (subsets)", default=1, defval=None)
   if input is None:
     break
   cancel("SET=")
   s = Set(input)

   anyout("set opened with: %s" % s.spec)
   anyout("set name       : %s" % s.name)
   anyout("subsets        : %s" % str(s.subsets))
   anyout("axperm         : %s" % str(s.axperm()))
   anyout("Axis in fixed order of set:" )

   for ax in s.axes():
      anyout( "Name = %-10s from %5d to %5d  grid 0 is %10g %-10s" % (
        ax.name, ax.slo, ax.shi, ax.crval, ax.cunit ) )

   anyout("Axis in order of user input:" )
   for a in s.axes( True, 'inside' ):
      anyout( "%s (subset axis)" % a.name )

   for a in s.axes( True, 'outside' ):
      anyout( "%s (repeat axis)" % a.name )

   axn = s.axnum(s.axname(1))
   anyout("Axis number of axis with name {} is {}".format(s.axname(1), axn))
   anyout("Axis origin of this axis is {}".format(s.axorigin(axn)))
   anyout("Size of this axis is {}".format(s.axsize(axn)))

   coordword = s.subsets[0]
   anyout("Coordinate word corresponding to first subset is {}".format(coordword))
   anyout("Dimension of the subset(s) is {}".format(s.ndims(coordword)))
   anyout("Grids from this subset: {}".format(s.grids(coordword)))
   anyout("Grid from this subset for axis number 1: {}".format(s.grid(0, coordword)))
   anyout("Grid from this subset for axis number 1: {}".format(s.grid(1, coordword)))

   gr = s.grids(coordword)
   cw = s.word(gr)
   anyout("Coordinate word for previously found grids is {} (should be {})".\
          format(cw, coordword))

   t = s.type("CRVAL1", 0)
   anyout("Type of FITS item CRVAL1 is {}".format(t))

   keys = s.keys(level=None)
   anyout("First level, keyword in keys is: "+str(keys[0]))
   anyout("First 4 FITS keywords found on any level: {}".format(keys[:4]))

   items = s.items(level=None)
   anyout("First (level,keyword), value in items is: "+str(items[0]))
   anyout("First 4 FITS keywords found on any level: {}".format(items[:4]))

   del s

finis()



   n = s.ndims( subset=True )
   anyout( "dimension of the subsets is: %s" % n )

   # use the axis permutation 'k' to get the axis name
   for k in s.axperm('inside'):
      anyout("subset axis name         : %s" % str(s.axname(k)))
   for k in s.axperm('outside'):
      anyout("repeat axis name         : %s" % str(s.axname(k)))


#!/usr/bin/env python
from gipsy import *

init()

s = Set(usertext("INSET=", "Set,subset(s): "))

for subset in s.subsets:
   anyout( "mean of subset" + " = " + str(s.subimage(subset).mean()) )

finis()


# (due to changes in the gipsy module, this code is now
#  equivalent to the previous example's)
#
for cword in s.subsets:
   subsetslice = s.subimage(cword)
   anyout( "mean of subset" + " = " + str(subsetslice.mean()) )


#!/usr/bin/env python
from gipsy import *

init()

s = Set(usertext(message="Setname"), write=True)

dim = s.naxis
anyout( "Dimension of set: %d" % dim )

# Get coordinate words of first data point in set and of the last one
lo, hi = s.range(0)

# Print the axis name and the range in grids for all the axes in the set
for i in range(dim):
   anyout("%s: from %d to %d" % (s.axname(i), s.grid(i, lo), s.grid(i, hi)))

# Print the value of a header item (at set level)
t = s[0, 'INSTRUME']
anyout( str(t) )


s[0, 'OBSERVER'] = 'Me'        # Change the value of a header item.
s['TEMPHEAD'] = None           # Delete item 'TEMPHEAD' on set level (=0)

del s                          # Close the set

finis()


#!/usr/bin/env python
from gipsy import *

init()

name = usertext(message="Set name")

s = Set(name, create=True)      # Mode 'create' creates a new set

s.extend("RA",   10, 5)         # Create an axis. Parameters: Name, origin and length
s.extend("DEC",  15, 4)
s.extend("FREQ",  0,  3)

i = s.image                     # Now you can create its data
anyout( str(s.slo) )
anyout( str(s.shi) )

i[:] = range(5)                 # Fill with numbers

x = i[1,:,]                     # Get a slice

anyout(str(x))
anyout(str(x.shape))

del s

finis()


#!/usr/bin/env python
from gipsy import *

init()                  # Contact Hermes

# Get the name of the GIPSY set by prompting with a default keyword INPUT=
name = usertext(message="Set name")

s = Set(name)           # Create set object s

i = s.image             # Extract the image part of the set object

k = i.shape[0]          # Length of first element = last axis

# Loop over all subsets
for j in range(0,k):
   m = i[j]             # Extract a subset along the last axis. Note that
                        # i[j] is an abbreviation of the array slice i[j,:,:]
   me = m.mean()        # Get the mean of this subset

   anyout( "mean of channel "+str(j)+" = "+str(me) )


del s                   # Release the object

finis()                 # Disconnect Hermes


#!/usr/bin/env python
from gipsy import *

init()

name = usertext(message="Set name")

s = Set(name, write=True)

i = s.image

val = userreal("value=", "Enter value to fill set")
anyout( str(val) )

# Entire set is set to this value
i[:] = val

del s
finis()


#!/usr/bin/env python
from gipsy import *

init()

s = Set(usertext("SET=", "Set, subset"), write=True)
anyout("blo= %s, bhi= %s" % (s.blo, s.bhi))

while True:
   b = usertext("BOX=", "Give box", defval='', default=1)
   cancel("BOX=")
   s.setbox(b)
   i = s.subimage(s.subsets[0])
   anyout(str(i.shape))
   anyout("blo= %s, bhi= %s" % (s.blo, s.bhi))
   v = userreal("VALUE=", "Give value")
   i[:] = v

finis()


s.whistory()
s.whistory('GIPSY (C) 2003')
s.wcomment('Processed on Albirumi')


#!/usr/bin/env python
from gipsy import *

init()
setin = Set(usertext("INSET=", "Set, subset:"))
anyout("flo= %s, fhi= %s" % (setin.slo, setin.shi))

# Prepare to enter a box

boxmes = 'Enter box in '
for k in setin.axperm('inside'):
    boxmes += str(setin.axname(k)) + ' '
boxmes += '   [entire subset]'
b = usertext("BOX=", boxmes, defval='', default=1)
setin.setbox(b)
anyout( "blo=%s bhi=%s" % (setin.blo,setin.bhi) )

outname = usertext("OUTSET=", "Name of output set: ")
setout=setin.copy( outname )

userexpr = usertext("EXPR=", "Enter expression f(x,y,data): ")

# Start to loop over all subsets. You need both the coordinate words
# of the input set and the output set.

for s in range( len(setin.subsets) ):
   Min  = setin.subimage(setin.subsets[s])
   Mout = setout.subimage(setout.subsets[s])

   for y in range(setin.blo[1],setin.bhi[1]+1):
      iy = y - setin.blo[1]
      for x in range(setin.blo[0],setin.bhi[0]+1):
         ix = x - setin.blo[0]
         data = Min[iy,ix]
         Mout[iy,ix] = eval(userexpr)

   setout.wminmax(setout.subsets[s]) # Update header items DATAMIN,DATAMAX,NBLANK

setout.whistory()                    # Save history to header
del setin
del setout

finis()


#!/usr/bin/env python
import gipsy as gip
import ioutils

gip.init()
myset = ioutils.wcsinp(requireddim=2)
myset.printinfo()
s = "You opened this set with:  " + myset.spec
gip.anyout(s)
s = "Is the data structure you selected a spatial map? " + str(myset.spatialmap)
gip.anyout(s)
s = "Is a missing spatial axis found? Index (0 relative) or None: " + str(myset.mixax)
gip.anyout(s)
s = "The 1 based axes numbers in the Projection object used for coordinate transformations: " + str(myset.projaxnum)
gip.anyout(s)
gip.finis()



#!/usr/bin/env python
import gipsy as gip
import ioutils


gip.init()
myset = ioutils.wcsinp()
myset.printinfo()
blo, bhi = myset.wcsbox()
s = "The grid limits of your data run from: "+str(blo) + " to " + str(bhi)
gip.anyout(s)
gip.finis()



#!/usr/bin/env python
from gipsy import *

init()

input = usertext("SET=", "Set, (subsets)")
s = Set(input)

ndim = s.ndims( subset=True )
x = userdble( "GRIDS=", "Enter position in subset (%d numbers): " % ndim, nmax=ndim )
anyout( "grid = %s" % str(x) )

axnames = ''
for a in s.axes( True, 'inside' ):
   axnames += a.name + '(s) '

for a in s.axes( True, 'outside' ):
   axnames += a.name + '(r) '

anyout( axnames )

for cword in s.subsets:
   p = s.tophys( x, cword, 'inside' )
   po = s.tophys( x, cword, 'outside' )

   #  Get the grids of the position of the subset on the repeat axes
   #  Method 1, use axis permutation array and grid() method
   #  st = ''
   #  for k in s.axperm('outside'):
   #     st += str(s.grid(k,cword))+ ' '

   # Method 2, use the axes() method for this subset. The repeat axes
   # need a coordinate word.
   st = ''
   for a in s.axes( cword, 'outside' ):
       st += str(a.blo) + ' '


   anyout( "%s repeat: (%s)=%s" % (str(p), st, str(po)) )

del s


finis()


#!/usr/bin/env python
from gipsy import *

init()

s = Set(usertext("set=",message="Setname"), write=True)
t = usertext("tab=",message="Table name")
c = usertext("col=",message="Column name")

# Create the column and prepare to store numbers of type DBLE.
s.crecol(t, c, "DBLE")

finis()


#!/usr/bin/env python
from gipsy import *

init()
# Get set name, table and column name
s = Set(usertext("set=",message="Setname"), write=True)
t = usertext("tab=",message="Table name")
c = usertext("col=",message="Column name")

# Get some doubles from user
data = userdble("data=", message="data", nmax=20)

# Write the data to that column at set level (0) and
# do not append but start writing at the begin.

s[0, t, c, :] = data

finis()


#!/usr/bin/env python
from gipsy import *

init()

set   = Set(usertext("set=",message="Setname"))
table = usertext("tab=",message="Table name")

cols = set.tabinq(table)

for col in cols:
   ctype, ccomm, cunts, rows = set.colinq(table,col)
   anyout("%s: Type= %s, Comment= %s, Units= %s Rows = %d"
        % (col,      ctype,       ccomm,     cunts,    rows) )

finis()


#!/usr/bin/env python
from gipsy import *

init()

s = Set(usertext("set=",message="Setname"))
t = usertext("tab=",message="Table name")
c = usertext("col=",message="Column name")


for l in s[0,t,c,:]:
   anyout(str(l))

finis()


#!/usr/bin/env python
import gipsy
import numpy

gipsy.init()


setname = gipsy.usertext("INSET=", message="Enter set name")
myset = gipsy.Set(setname, write=True)

# Let's write a new table and column first to append to the header
tabname = "AMIGA"
colname = "ID"
coltype = 'DBLE'
subset = 0
myset.crecol(tabname, colname, coltype, subset=subset) #, colcomm="Just testing", colunits="kHz")
data = numpy.linspace(0,10)
myset[subset, tabname, colname, :] = data


# Generate a list of tables. This routine will find ALL tables, i.e.
# it does not depend on the given subset level
# So with 'tablis', you will find different subset levels. They are not
# necessarily the same as the subsets you entered with INSET=
# This is kind of a pitfall. If you need to access tables on a certain
# subset level, you have to filter (see next section)

# 'tablis' needs a maximum. The default is 100 (it is a C routine which uses
# dynamic memory allocation. If there are more
# than 'maxtables', we try again with an increased number
maxtables = 200
attempts = 0
while attempts >= 0:
   try:
      tablist = myset.tablis(nitems=maxtables)
      attempts = -1
   except:
      maxtables += maxtables/2
      attempts += 1

# Now filter the table list on subset levels
filteredtables = []
for tabl in tablist:
   tablename, subset = tabl
   s = "Found %s at level %d"%(tablename,subset)
   gipsy.anyout(s)
   if subset in myset.subsets:
      filteredtables.append(tabl)

# Sort on subset first and then on name
from operator import itemgetter
sortedtables = sorted(filteredtables, key=itemgetter(1,0))

gipsy.anyout("Tables on the required subset level(s):")
for tnam, tlev in sortedtables:
   gipsy.anyout("%s   (%d)"%(tnam,tlev))


# For all the tables, get the information about its columns
for tabl in sortedtables:
   tablename = tabl[0]
   subset = tabl[1]
   gipsy.anyout("\nTABLE: %s"%tablename)
   cols = myset.tabinq(tablename, subset=subset)      # Get the columns for this table at this subset level
   s = "%10s %10s %10s %10s %-20s" % ("Columns", "Type", "Units", "Rows",  "Comment")
   gipsy.anyout(s)
   gipsy.anyout("="*len(s))
   for col in cols:
      ctype, ccomm, cunits, rows = myset.colinq(tablename, col, level=subset)
      gipsy.anyout("%10s %10s %10s %10d %-20s" % (col, ctype, cunits, rows, ccomm))


# Let's assume we want the contents of all the columns in table with index 0
if len(sortedtables) >= 1:
   table = sortedtables[0]
   tablename, subset = table
   gipsy.anyout("\n\nContents of table %s:" % tablename)
   cols = myset.tabinq(tablename, subset=subset)
   for col in cols:
      rows = myset[subset, tablename, col, :]
      gipsy.anyout("%s = %s" % (col, str(rows)))


key = "DELTAB="
mes = "Enter name of table to delete ... [skip deleting]:"
tablename = gipsy.userchar(key, mes, default=1, defval="")

if tablename:
   # Find this name in the list of table tuples
   deltabs = [x for x in sortedtables if x[0]==tablename.upper()]
   if deltabs:
      tname, subset = deltabs[0]
      myset.deltab(tname, subset)
      gipsy.anyout("I deleted table [%s] at subset level [%d]"%(tname,subset))
   else:
      gipsy.anyout("Did not find this table to delete!")

key = "DELTABLIST="
mes = "Delete all tables in given subset(s) ... Y/[N]:"
deltablist = gipsy.userlog(key, mes, default=1, defval=False)
if deltablist:
   for tablename, subset in sortedtables:
      myset.deltab(tablename, subset)

key = "DELALLTAB="
mes = "Delete all tables on all levels ... Y/[N]:"
delalltab = gipsy.userlog(key, mes, default=1, defval=False)
if delalltab:
   for tablename, subset in tablist:
      myset.deltab(tablename, subset)


gipsy.finis()

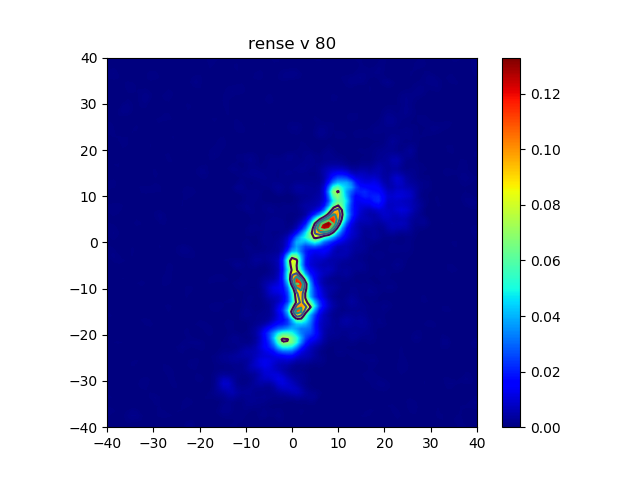

#!/usr/bin/env python
import gipsy
import numpy as np
from matplotlib.pyplot import figure, show


gipsy.init()

# Get GIPSY set and enter box
setspec = gipsy.usertext("SET=", "Set, 1 subset:")
s = gipsy.Set(setspec)
gipsy.anyout(gipsy.myname()+": "+"flo= %s, fhi= %s" % (s.slo, s.shi))

# Use GIPSY way to end program if dimensionality is wrong
if s.ndims(subset=True) != 2:
   gipsy.error(4, "Subset must be 2-dimensional")

boxmes = 'Enter box in '
for a in s.axes(True, 'inside'):
   boxmes += a.name + ' '
boxmes += '   [entire subset]'

b = gipsy.usertext("BOX=", boxmes, defval='', default=1)
s.setbox(b)
gipsy.anyout(gipsy.myname()+": "+"blo=%s bhi=%s" % (s.blo,s.bhi))

cw = s.subsets[0]        # Coordinate word
defval = None
prompt = "Enter max. 10 levels between (%g,%g):    [calculated]" %\
          (s[cw,'datamin'], s[cw,'datamax'])
levels = gipsy.userreal("LEVELS=", prompt,
                        default=1, defval=defval, nmax=10)

# Get the image data from this subset
M = s.subimage(cw)

# Artificial levels for contours
if defval is None:
    levels = np.linspace(M.min(), M.max(), 10)[-5:]

# The plot with Matplotlib
fig = figure()
ax = fig.add_subplot(1,1,1)
extent=(s.blo[0], s.bhi[0], s.blo[1], s.bhi[1])
im = ax.imshow(M, interpolation='bilinear', cmap='jet',
                  origin='lower', extent=extent,
                  vmin=0.0, vmax=M.max())
fig.colorbar(im, ax=ax)
ax.contour(M, levels=levels, extent=extent)
ax.set_title(setspec)
show()

# Show is over, cleanup set object and disconnect from Hermes
del s
gipsy.finis()


#!/usr/bin/env python
import gipsy


import os
import tempfile
class Gplot:
   """
------------------------------------------------------------------
Example of a class to facilitate the use of an existing
GIPSY task. In this example we made methods for
writing and executing a GPLOT input file (see GPLOT documentation
in GIPSY)
Methods:
Gplot.addcommand( str ) : str is a string which represents a Gplot
                          command.
Gplot.plotondevice( device, gplotinputfile ): device is a string
                          representing a valid GPLOT device (X11,
                          PCPSFILE etc.). gplotinputfile is a
                          file name. If omitted, a tempory file
                          is created else a file with the given
                          name is kept on disk.
------------------------------------------------------------------
"""
   def __init__( self ):
      self.commandlist = []
   def addcommand( self, command ):
      self.commandlist.append( command )
   def plotondevice( self, device="X11", gplotinputfile = '' ):
      if gplotinputfile == '':
         name = tempfile.mktemp(dir='.')       # Get a unique name for a file
         remfile = True
      else:
         name = gplotinputfile
         remfile = False
      f = open( name, 'w' )
      f.write( "device %s\n" % device )
      for com in self.commandlist:
         f.write( com + '\n' )

      f.close()

      # Start GPLOT and load the input file. Provide the COMMAND=
      # keyword with value 'quit' to finish GPLOT.

      gipsy.xeq( "GPLOT COMMAND=input %s;quit" % name )

      if remfile:
         os.remove( name )                     # Remove the file from disk




#!/usr/bin/env python
import gipsy
from Gplot import *


gipsy.init()

# For a PostScript file, write something like PCPSFILE/myfile.ps
defdev = "X11"
dev = gipsy.usertext( "DEVICE=", "Enter device:  [%s]" % defdev, 1, defdev )

setname = gipsy.usertext( "INSET=", "Enter set, subset", 0 )
s = gipsy.Set( setname )

# Use GIPSY way to end program if dimensionality is wrong
if s.ndims( subset=True ) <> 2:
   gipsy.error(4,str("Subset must be 2-dimensional"))

cw = s.subsets[0]
levels = gipsy.usertext( "LEVELS=", "Enter <10 levels between [%g,%g]" %
                         (s[cw,'datamin'], s[cw,'datamax']), 0 )

# Write the GPLOT input file

ob = Gplot()
ob.addcommand( "inset %s" % setname )
ob.addcommand( "box" )
ob.addcommand( "xsize 120" )
ob.addcommand( "ysize 120" )
ob.addcommand( "colour cyan" )
ob.addcommand( "levels %s" % levels )
ob.addcommand( "contour" )
ob.addcommand( "colour yellow" )
ob.addcommand( "font roman" )
ob.addcommand( "frame" )
ob.plotondevice( dev )

# Alternatives:
#ob.plotondevice( dev, gplotinput="mygplotinput.txt" )
#obplotondevice()                                      # X11 is default device
#ob.plotondevice( device='X11', gplotinput="mygplotinput.txt" )

gipsy.finis()


#!/usr/bin/env python
import os
import fnmatch
import gipsy
import glob


# Find all GIPSY sets in all sub directories starting at a given path
# Note: Symbolic links to directories are not treated as subdirectories


gipsy.init()
walkpath = gipsy.usertext( "PATH=",
                           "Enter path to start searching:   [current dir]",
                           default=1, defval='.', nmax=512 )
filetupel = os.walk( walkpath )
for dir in filetupel:
   for filenam in dir[2]:
      if fnmatch.fnmatch( filenam, "*.descr" ):
         base = filenam.replace( ".descr", "" )
         descrpart = dir[0]+'/'+ base + '.descr'
         impart = dir[0]+'/'+ base + '.image'
         sized = os.stat(descrpart)[6] / 1024.0
         if glob.glob( impart ):
            sizei = os.stat(impart)[6] / 1024.0
         else:
            sizei = 0.0
         gipsy.anyout( "%s decr=%d im=%d (kb)" %(dir[0]+'/'+ base ,sized, sizei) )


gipsy.finis()


#!/usr/bin/env python
import gipsy
import pyfits
import tempfile


gipsy.init()

fitsfile = gipsy.usertext("FITSFILE=", "Enter name of fits file: " )
fimg = pyfits.open( fitsfile )           # Open a fits file

# name = gipsy.usertext("SETNAME=", message="Set name: ")
name = tempfile.mktemp(dir='.')
gipsy.anyout( name )
s = gipsy.Set(name, create=True)         # Create a set with this name


# Next we want to read the minimum set of axes properties
# so that we can build a GIPSY set. We use the get() method
# to access a header item because a default value can be
# returned if an item doed not exist. For example DSS fits
# files does not have a ctype, so we substitute axis names
# 'X', 'Y', 'Z', 'A', 'B' etc.

prihdr = fimg[0].header                  # Assuming the data is in first hdu
naxis = prihdr['naxis']
for i in range(naxis):
   # Generate 'X', 'Y', 'Z', 'A', 'B' etc.
   defnam = chr(divmod(ord('X')-ord('A')+i,26)[1] + ord('A'))
   istr = str(i+1)                       # Start counting at 1, NAXIS1 etc.
   len = prihdr.get('naxis'+istr, 1)
   ori = prihdr.get('crpix'+istr, 1)
   nam = prihdr.get('ctype'+istr, defnam)
   gipsy.anyout( 'GIPSY: Creating axis %s %s %s' % (nam,ori,len ) )
   s.extend( nam, ori, len )
   s[0,'cunit'+istr] = prihdr.get('cunit'+istr, '??')
   s[0,'crval'+istr] = prihdr.get('crval'+istr, 1)
   s[0,'cdelt'+istr] = prihdr.get('cdelt'+istr, 1)

gdsimage = s.image

# Copy the contents
# Pitfall: Do not use the statement: gdsimage = fitsdata
# which would fail to copy the data because you lost your reference
# to s.image

gdsimage[:] = fimg[0].data

# Update the header with the minimum and maximum values of the data
s.wminmax()


if naxis == 2:
   gipsy.xeq( "SLICEVIEW INSET=%s ggiopt=fixcol" % name )

s.delete()

gipsy.finis()


#!/usr/bin/env python

import sys
from math import *
from PyQt5.QtCore import *
from PyQt5.QtGui import *
from PyQt5.QtWidgets import *
import gipsy

slmin =   0                                   # slider's minimum value
slmax = 100                                   # slider's maximum value

fac = log(10.0)/float(slmax)

def sli2key(widget):                          # slider value -> keyword value
   return str(exp(float(QSlider.value(widget))*fac))

def key2sli(key):                             # keyword value -> slider value
   return log(gipsy.userdble(key))/fac

def show_value(cb):                           # display value in task status
   gipsy.status("Slider's derived value: %0.2f" % gipsy.userdble(cb.key) )

class Form(QDialog):
    def __init__(self, parent=None):
        super(Form, self).__init__(parent)
        self.slider = QSlider()
        self.slider.setOrientation(Qt.Horizontal)
        self.slider.setMinimum(slmin)
        self.slider.setMaximum(slmax)
        self.sliderlink = gipsy.QtLink("VALUE=", self.slider,
                                       keyval=key2sli, widgetval=sli2key)
                                              # connect keyword to widget
        layout = QVBoxLayout()
        layout.addWidget(self.slider)
        self.setLayout(layout)
        self.setWindowTitle("Log. slider")

gipsy.init()                                  # open connection with Hermes

app = QApplication(sys.argv)
gipsy.qtconnect()                             # connect Hermes events to Qt
gipsy.KeyCallback(show_value, 'VALUE=')       # register keyword callback
form = Form()
form.show()
app.exec_()

gipsy.finis()                                 # close connection with Hermes


#!/bin/env python

from gipsy import *
import math

# ========================= Initial Parameters ===============================
NPTS = 100
a  = 0.7; b = 1.0
xmin =  0.0; xmax = 6.2831853;
ymin = -1.1; ymax = 1.1
incr = (xmax-xmin)/NPTS
xvals = list(map(lambda x: xmin+x*incr, range(NPTS)))  # list for Python 3
yvals = None;

# ========================== Functions =======================================

# ---------------------- keyword setter --------------------------------------
def triggerkey(key, value=None):
   wkey("%s%s" % (key, usertext(key, default=2, defval=str(value))))

# ---------------------- graph drawer ----------------------------------------
def drawplot():
   global yvals
   if yvals: pgline(xvals, yvals)                    # erase any previous graph
   yvals = list(map(lambda x: a*math.sin(b*x), xvals))     # compute new y-values
   pgline(xvals, yvals)                              # draw graph

# ---------------------- event handler for QUIT= keyword ---------------------
def quit(cb):
   if userlog(cb.key):
      wkey(cb.key)                                   # set back to False
      finis()                                        # terminate program

# ---------------------- event handler for both A= and B= keywords -----------
def number(cb):
   globals()[cb.var] = userreal(cb.key)              # assign to global variable
   drawplot()                                        # (re-) draw graph

# ====================== Main Program ========================================

init()                                               # program initialization

base = GgiBase()                                     # Ggi initialization

button = base.Button("QUIT=", "Terminate program")   # create button
text1  = base.TextField("A=", None, 10)              #   ,,   text input field
text2  = base.TextField("B=", None, 10)              #   ,,   text input field
gauge1 = base.Gauge("A=", None, 200, -1.0, 1.0)      #   ,,   slider
gauge2 = base.Gauge("B=", None, 200, 0.5, 5.0)       #   ,,   slider
plot   = base.PlotField("MYPLOT", 400, 300)          #   ,,   PGPLOT device
label  = base.Label("y = A*sin(B*x)")                #   ,,   text label

gauge1.setLabel(" ", 1)                              # remove standard ...
gauge2.setLabel(" ", 1)                              # ... label from sliders

button.setPosition(0, None, 0, None)                 # top left in window
plot.setPosition(0, None, 10, button)                # below button
label.setPosition(-(plot.width+label.width)/2, plot, # centered above plot
                  -plot.height-label.height-5, plot)
text1.setPosition(0, None, 10, plot)                 # below plot
text2.setPosition(0, None, 0, text1)                 # below text1
gauge1.setPosition(0, text1, 10, plot)               # right of text1
gauge2.setPosition(0, text2,  0, text1)              # right of text2

base.realize()                                       # activate Ggi
plot.open()                                          # open PGPLOT device
pgenv(xmin, xmax, ymin, ymax)                        # draw frame
plot.xor(True)                                       # XOR drawing mode
pgsci(3)                                             # green graph colour

KeyCallback(quit,   "QUIT=")                         # register QUIT= callback
KeyCallback(number, "A=", var='a')                   #    ,,    A=       ,,
KeyCallback(number, "B=", var='b')                   #    ,,    B=       ,,

triggerkey("A=", a)                                  # initialize keywords ...
triggerkey("B=", b)                                  # ... to draw first graph

mainloop()                                           # action!


#!/usr/bin/env python
from gipsy import *

NCI=200                                   # number of color indices

# ========================== Functions =======================================

# ---------------- event handler for FILE= keyword ---------------------------
def file_cb(cb):
   choice = userint(cb.key, defval=-1)
   if choice==0:
      GgiBase.base.Inset('SETNAME=', 'SET=', 'BOX=').ndims(2)
   elif choice==1:
      if GgiBase.base.verify('Really quit?', 'Yes, quit.', 'No, continue!'):
         finis()

# ---------------- event handler for SET= keyword ----------------------------
def inset_cb(cb):
   global set
   try:
      set.close()                         # close any previously opened set
   except:
      pass
   set = Set(usertext(cb.key))            # open set

# ---------------- event handler for BOX= keyword ----------------------------
def box_cb(cb):
   set.setbox(usertext(cb.key, defval=''))
   wkey('SHOW=YES')                       # cause SHOW= keyword event

# ---------------- event handler for SHOW= keyword ---------------------------
def show_cb(cb):
   if userlog(cb.key):
      image = set.subimage(set.subsets[0])        # (numpy-) image array
      if len(image.shape)!=2:                     # check dimensionality:
         reject('SET=', 'Must be 2-dimensional')  # wrong: reject input
         return
      idim = image.shape[1]                       # horizontal size
      jdim = image.shape[0]                       # vertical size
      tr = [-0.5/idim, 1.0/idim, 0.0, -0.5/jdim, 0.0, 1.0/jdim] # pgimag matrix
      imgmin = image.min(); imgmax = image.max()  # image min- and max-values
      pgsimi(userlog('INTERPOL='))                # image interpolation?
      pgimag(image, idim, jdim, 1, idim, 1, jdim, imgmin, imgmax, tr) # draw
      coled.limits(imgmin, imgmax)                # adjust color wedge's ...
      coled.units(str(set['BUNIT']))              # ... limits and units
      show.active(True)                           # enable 'SHOW' button
   wkey(cb.key)                                   # reset keyword (and button)

# ====================== Main Program ========================================

init()                                    # Open Hermes communication

base  = GgiBase()                         # Ggi initialization

file  = base.Menu('FILE=', 'Options menu', ['Inset', 'Quit'])          # menu
intp  = base.Button('INTERPOL=', 'Interpolation ON/OFF').setLabel('INTP') # btn
show  = base.Button('SHOW=', 'Show image').active(False)               # button
plotf = base.Form('PLOTFORM', 4)          # Frame for PGPLOT window
coled = base.ColorEditor(16, NCI)         # Color manipulation element
logo  = base.Logo()                       # The GIPSY logo

file.setPosition(0, None, 0, None)        # top left
intp.setPosition(0, file, 0, None)        # right to 'file'
plotf.setPosition(0, None, 10, file)      # below 'file'
coled.setPosition(0, None, 5, plotf)      # below 'plotf'
logo.setPosition(-logo.width, plotf, -logo.height, coled) # bottom right corner
show.setPosition(-show.width, plotf, 0, None)             # top right corner

plot = plotf.PlotField('PLOTTER', 400, 400)  # PGPLOT window
plot.setPosition(0, None, 0, None)        # top left in 'plotf'
plot.colors(16+NCI+1, False)              # allocate colors

base.realize()                            # initialize GUI
plot.open()                               # open PGPLOT device
pgscir(16, 16+NCI-1)                      # set color index range

KeyCallback(inset_cb, 'SET=')             # register keyword handler
KeyCallback(box_cb,   'BOX=')             #   ,,        ,,     ,,
KeyCallback(file_cb, 'FILE=')             #   ,,        ,,     ,,
KeyCallback(show_cb, 'SHOW=')             #   ,,        ,,     ,,

mainloop()                                # Action!


#!/usr/bin/env python

from gipsy import *
import time, random

init()
inset = usertext('inset=')
delay = 2.0*random.random()+1.0
anyout('Start thinking about set "%s".' % inset)
time.sleep(delay)                                # simulate processing
if random.random()<0.1:                          # simulate 10% failure
   error(4, 'couldn\'t think about set "%s" anymore' % inset)
anyout('%s thought about set "%s" during %g seconds.'
        % (myname(), inset, delay))
finis()


#!/usr/bin/env python
from gipsy import *

init()

inset  = usertext("INSET=", "Input set name")
work   = userint("SUBSETS=", "Subset numbers", nmax=1000)

failed = []                           # list of subsets which failed

for subset in work:
   try:
      xeq('think inset=%s %d' % (inset, subset)) # start and wait for completion
   except:                                       # in case of failure ...
      failed.append(subset)                      # ... register subset number

if failed:
   anyout("Subset(s) failed: %s" % repr(failed))

finis()


#!/usr/bin/env python
from gipsy import *

def runjob():
   if work:
      subset  = work.pop(0)             # get next subset to be processed
      job     = inactive.pop(0)         # obtain free job identifier ...
      active.append(job)                # ... and put it in the active list
      jobname = 'job%d' % job           # job name (and job keyword)
      KeyCallback(jobdone, jobname, subset=subset, job=job)
                                        # schedule task completion callback
      xeq('%s(think) inset=%s %d' % (jobname, inset, subset), jobname)
                                        # start task and continue

def jobdone(cb):
    active.remove(cb.job)               # move job identifier from active ...
    inactive.append(cb.job)             # ... to inactive list
    fate = userint(cb.key)              # read task's exit status ...
    if fate<0:                          # ... and in case of failure ...
       failed.append(cb.subset)         # ... register subset number
    runjob()                            # start next job
    cb.deschedule()                     # deschedule this job's callback

init()

inset  = usertext("INSET=", "Input set name")
work   = userint("SUBSETS=", "Subset numbers", nmax=1000)
npar   = userint("NPAR=", "Number of parallel jobs")

failed   = []                           # list of subsets which failed
active   = []                           # job identifiers in use
inactive = range(npar)                  # available job identifiers

while inactive:                         # start the first 'npar' jobs
   runjob()

mainloop()                              # event loop: returns when there ...
                                        # ... are no scheduled callbacks left
if failed:
   anyout("Subset(s) failed: %s" % repr(failed))

finis()
