GPLOT recipes: Building a gray scale plot with COLA

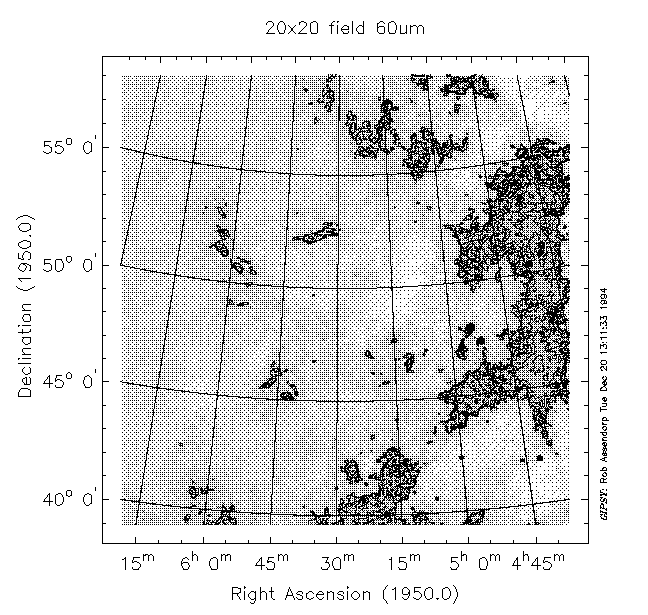

The displayed plot is a gray scale plot with a coordinate grid overlay. Program COLA generated the GPLOT commands.

The COLA file:

The COLA file (Control language for use with Hermes) consists of two parts. The first part is written to get values from the user to set scales, titles etc. The second part is the actual call to GPLOT.
! Author: Rob Assendorp (19-12-'94)
! declare variables
real size,side,pixel,xid,yid,paper,scale,zero,sigma,upper
string set,sett,objname,grdevice
integer myerr
! size on paper
! ask device name
grdevice = "tekt"
read "grdevice [%grdevice]" grdevice
! ask setname and label
read "set to plot" set
read "name to put in plot" objname
! if device name equals lps, then set PS file
IF grdevice = "lps" THEN
  grdevice = "lps/"
! get max of data, if not set use MNMX
myerr = rhead(set, 1, "DATAMAX", upper)
IF upper < .001 THEN
  "mnmx inset=%set"
  myerr = rhead(set, 1, "DATAMAX", upper)
! get size and pixel size of data
myerr = rhead(set, 1, "CDELT2", pixel)
myerr = rhead(set, 1, "NAXIS1", size)
size = size*pixel
pixel = pixel*3600
! now ask box
read "Size of box in degree [%size]" size
! determine side of box
! determine scale
! determine position for ID text
xid = side/2+scale*10
yid = -side/2+1
! get zero, noise
read "background level" zero
read "noise level" sigma
The second part of the COLA file is the actual call to GPLOT. But before that, all the COLA related expressions are evaluated. Note that GPLOT needs only one keyword and that this keyword (COMMAND=) is prompted in a loop. Therefore in a COLA file all GPLOT commands must be separated by semicolons (;).
! Now go and plot
"gplot command=
device %grdevice;
inset %set;
box -%side/2+1 -%side/2+1 %side/2 %side/2;
xscale  %scale;
yscale  %scale;
location 50 30;
xmargin 5;
ymargin 5;
level %zero-3*%sigma:%zero+3*%sigma:%sigma 2*%upper:2*%upper+14:1;
input ra.mac;
The macro ra.mac is read from the current directory and contains a number of lines (without the semicolons) to set properties for axes in the RA direction. Its contents is:
axpos * 5 0 0
axdelta 15 hmsmin
axminor 3
Now continue with the COLA file. The coordinate grid (curved coordinate lines) is plotted with the 'E' extension in the axis command. To get a good covering of the grid, use the 'E' option for all axis commands. The sampling (cgstep) is set to 0.5 grids, so at each 0.5 grid a position is calculated and a part of the grid is plotted.
cgstep 0.5
axis BPE;
axtitle Right Ascension (1950.0);
input ra.mac;
axis TPA00E;
input dec.mac;
The macro dec.mac contains a number of lines (without the semicolons) to set properties for axes in the DEC direction. Its contents is:
axpos * 40 0 0
axdelt 5 degree
axmin 5
Continue with the COLA file:
axis LPE;
axtitle Declination (1950.0);
input dec.mac;
axis RPA00E;
level %zero+3*%sigma %zero+4*%sigma %zero+6*%sigma %zero+10*%sigma %zero+20*%sigma;
level %zero+30*%sigma %zero+50*%sigma %zero+100*%sigma %zero+200*%sigma;
toplabel %objname;
symbol 18;
charheight 8;
charheight 3.5;
! This info is not included in the plot displayed above.
move 180 180;text Set: %set;
move 180 175;text Zero level: z\(0226)%zero;
move 180 170;text Sigma level: s\(0226)%sigma;
move 180 165;text Gray levels: z+n*s, n\(0226)-3,-2,-1,0,1,2,3;
move 180 160;text Drawn contours: z+n*s, n\(0226)3,4,6,10,20,50,100,200;
move %xid %yid;
angle 90;
charheight 2.0;
Note the closing quote. After the COLA file activated COLA, user input is requested. Then the input is used to process the call to GPLOT. The COLA call to GPLOT has syntax:
"GPLOT COMMAND=command1; command2; .... ; quit"
